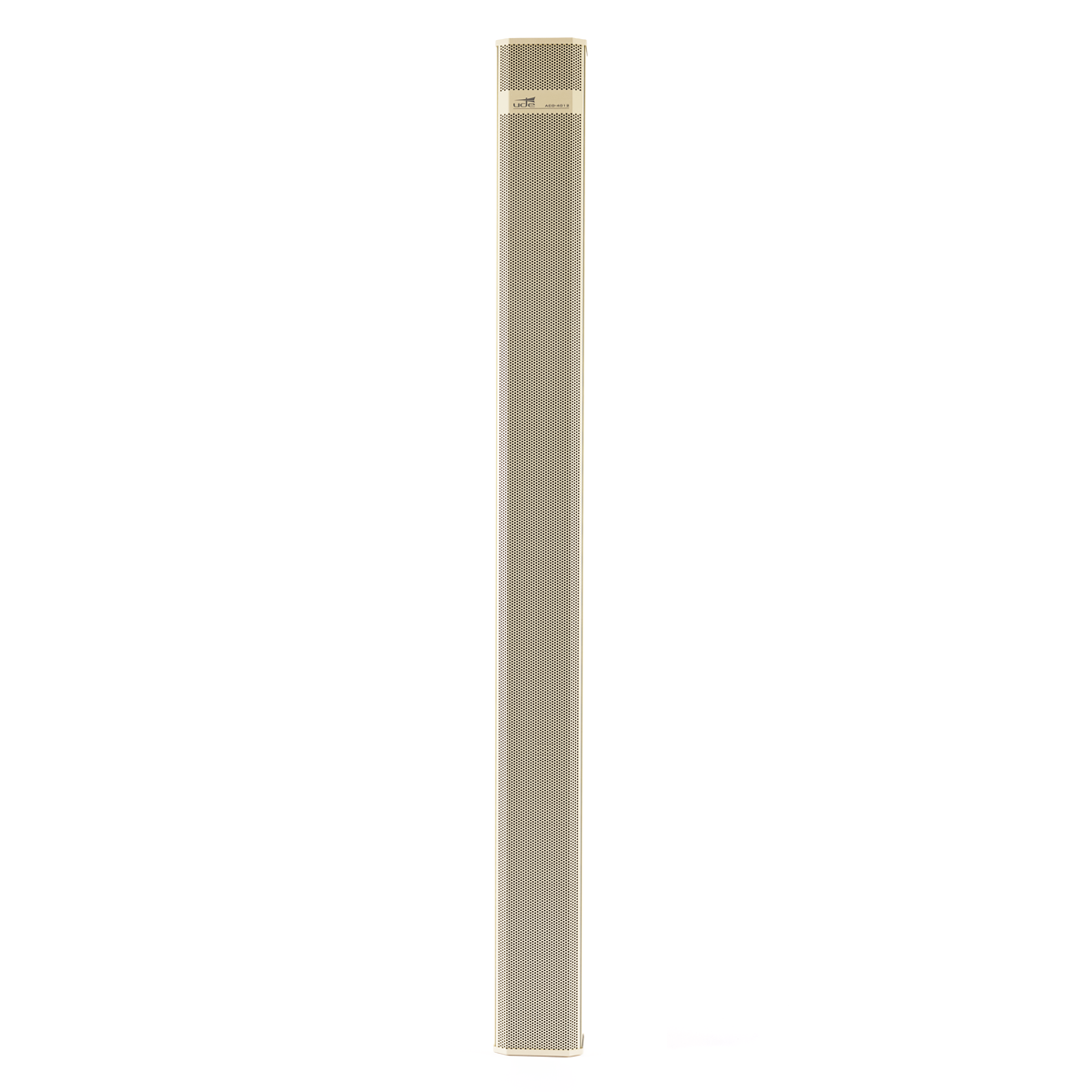

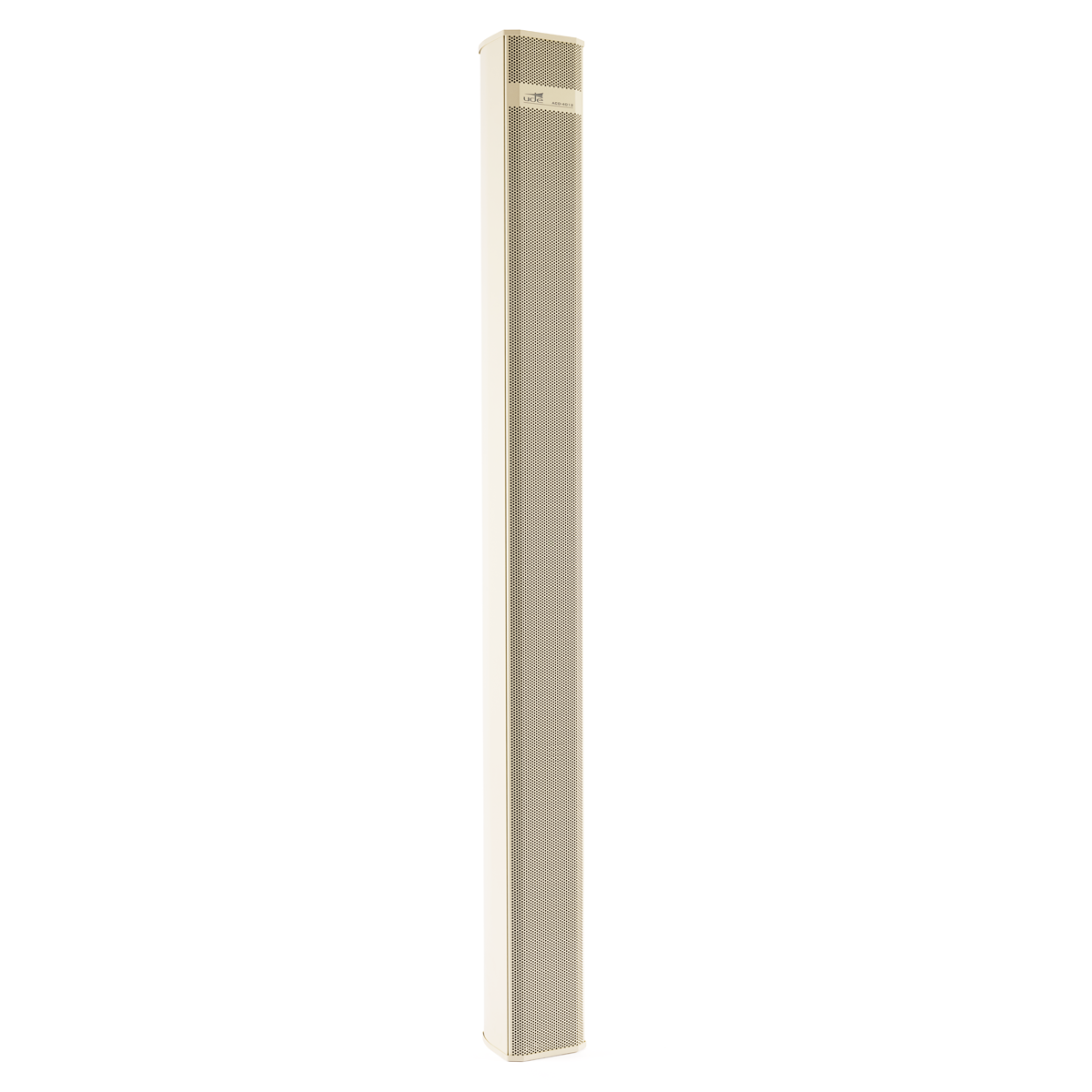

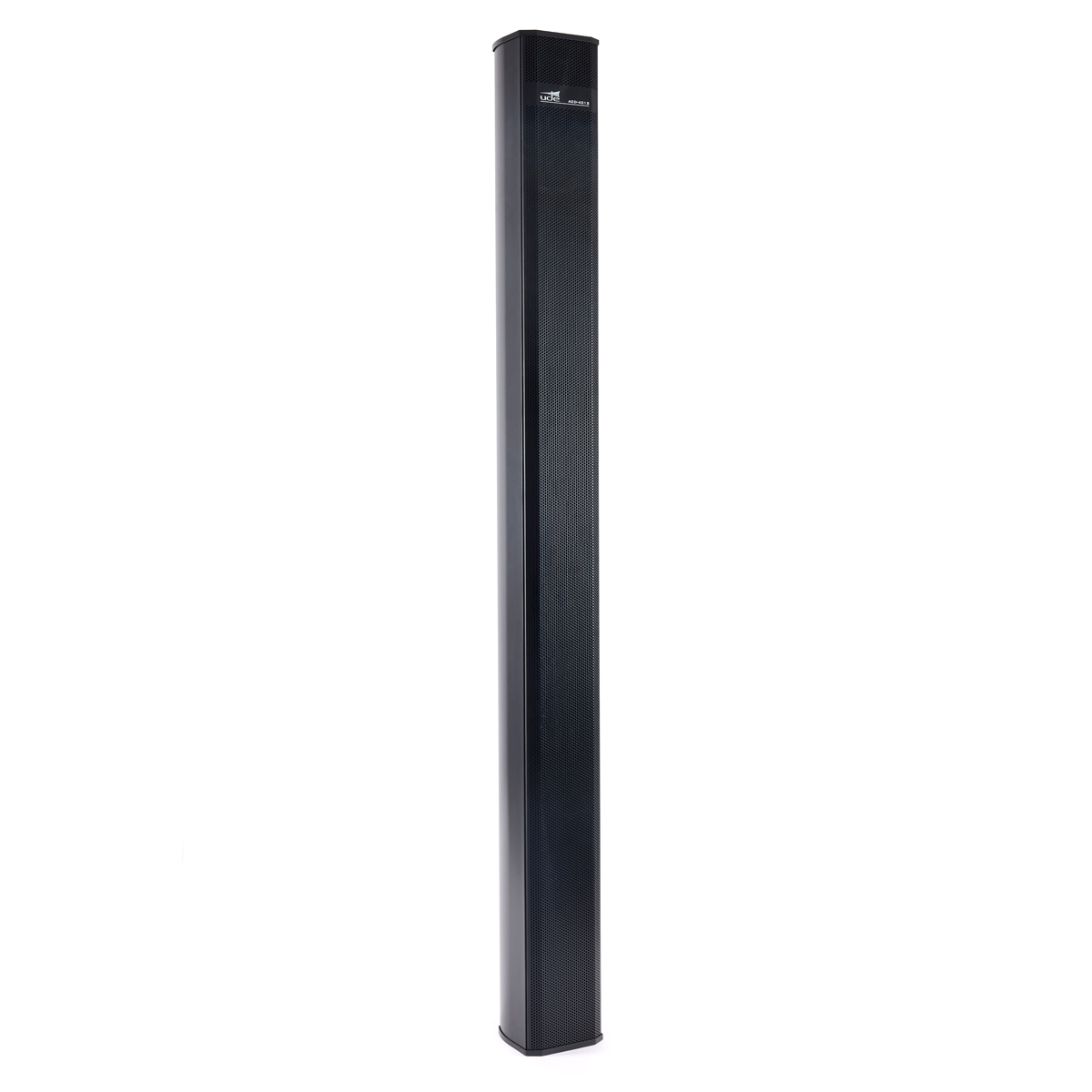

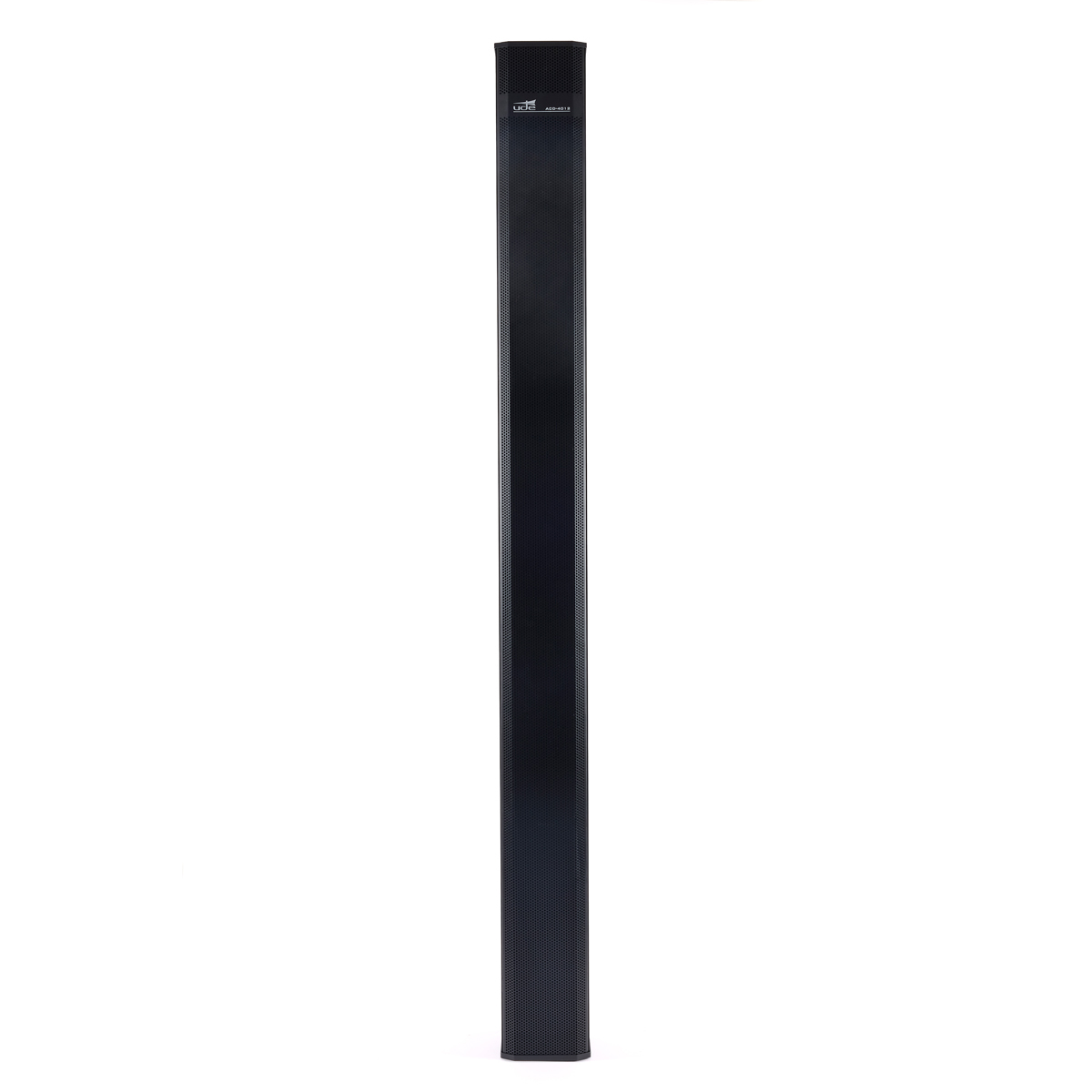

Digital line array column with 12 speakers
The ACD-4008 and ACD-4012 line array speakers, with 270 and 400W RMS respectively, designed in Spain, offer high intelligibility and sound quality in acoustically complex environments thanks to UDE Beam-Steering Algorithm technology, which allows for precise sound direction and uniform coverage. Easy and intuitive setup is achieved via a Wi-Fi-accessible web server, requiring no additional applications and accessible from any web browser.
Characteristics:
Speakers: 8 Kapton cone (special for outdoor and humid environments)
Amplifier type: 12x PWM (Class-D)
Rated power: 420W RMS
Frequency response: 80 Hz – 20,000 Hz
SPL Level (Max. 1 m / Pink Noise): 118 dB
SPL level (Max. 30 m / Pink noise): 95 dB
Range: <40
Horizontal dispersion: 140º
Sound beam angle adjustment: +/- 33º
Signal input: Balanced
L100V Input: Balanced.
Signal output: Balanced
Input sensitivity: 0 dB / -3 dB / -12 dB
Communication protocol: WebServer via WiFi
Maximum power consumption: 500W
Standby power consumption: 5W
Power supply: 90 – 240 Vac 50/60 Hz
Dimensions: 1666 x 150 x 139 mm
Weight: 19Kg
